The Vertical Axis sub-tab is available on the Transient Stability Analysis dialog and the PV Curve dialog on the Plot Designer sub-tab of the Plots page. The vast majority of features for plotting are common to both Transient Stability and PV Curves. In cases where there is a difference in functionality it will be denoted in the help documentation.

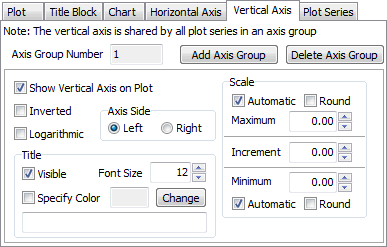

This tab provides information about the axis group that is currently selected in the Plots, Subplots, Axis Groups list found on the Plot Designer sub-tab. An axis group is selected if any of its corresponding plot series are selected in the list.
The vertical axis is shared by all plot series in the selected axis group.
Axis Group Number
This is an informational field. Each axis group is assigned a number when it is created. The user cannot change this value.
Add Axis Group
Click this button to add an axis group to the currently selected subplot.
Delete Axis Group
Click this button to delete the currently selected axis group.
Show Vertical Axis on Plot
Check this box to show the vertical axis for this access group on the current subplot.
Inverted
Check this box to have the scale on the vertical axis go from high to low values when moving bottom to top along the axis.
Logarithmic
Check this box to use a logarithmic scale on the vertical axis of the current axis group.
Title
Check the Visible box to make the vertical axis title shown for the current axis group. Check the Specify Color box and choose an desired color to specify a font color for the title. Specify the Font Size and the actual title text in the box provided. Special strings may be entered, preceded by a '@' symbol, which will be automatically interpreted as an appropriate string to place in the title. A short list is below, but a more complete list of options is found in the Special Strings for Plot Features help topic.
@CTGName will display the appropriate contingency name
@CTGEvents will show the transient result event.
@CTGMemo will show the memo of the transient contingency in the plot.
@CASENAME will show the name of the case presently open.
@BUILDDATE will show the Simulator patch build date. @DATETIME will show the present date and time.
@DATE will show the present date.
@TIME will show the present time.
Scale
Maximum
Check the box next to Automatic to have the maximum value on the scale automatically determined based on the results or uncheck this box and specify the value manually. Check the box next to Round to have the maximum value rounded when the Automatic checkbox is also checked.
Increment
Specify the increment between scale markings. If zero is specified, the increment will be determined automatically.
Minimum
Check the box next to Automatic to have the minimum value on the scale automatically determined based on the results or uncheck this box and specify the value manually. Check the box next to Round to have the minimum value rounded when the Automatic checkbox is also checked.
