Edit Mode Ribbon Group

Concept Link IconSee Also



The Edit Mode ribbon group contains basic analysis tools that are only available in Edit Mode. The Group is shown below.





Equivalencing

Click this button to open the Equivalencing Dialog.

Modify Case Menu

 The Modify Case Menu contains actions related to modifying the network model.

Tap Transmission Line: Opens the Tap Transmission Line Dialog.

Move Bus Equipment: Opens the Move Bus Equipment Dialog.

Split Bus: Open the Split Bus Dialog.

Merge Buses: Opens the Merge Buses Dialog.

Create Composite Load Model: Opens the Create Composite Load Models Dialog.

List of Unused Bus Numbers: Clicking this button to get a list of unused bus numbers in the model.

Append Case: Provides access to opening a case while appending.

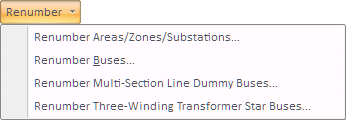

Renumber Menu

The Renumber Menu contains actions related to renumbering data in the model.

Renumber Areas/Zones/Substations: Opens the Renumber Areas, Zones and Substations Dialog.

Renumber Buses: Opens the Renumber Buses Dialog.

Renumber Multi-Section Line Dummy Buses: Allows user-specification of dummy bus numbers for multi-section lines. See the section Multi-Section Line records > Renumber Dummy Buses with the Multi-Section Lines Display topic for more information.

Renumber Three-Winding Transformer Star Buses: Allows user-specification of three-winding transformer star bus numbers. See the section 3W Transformers records > Renumber Star Buses with the Three Winding Transformer Display topic for more information.
