Transient Stability Analysis Options: General

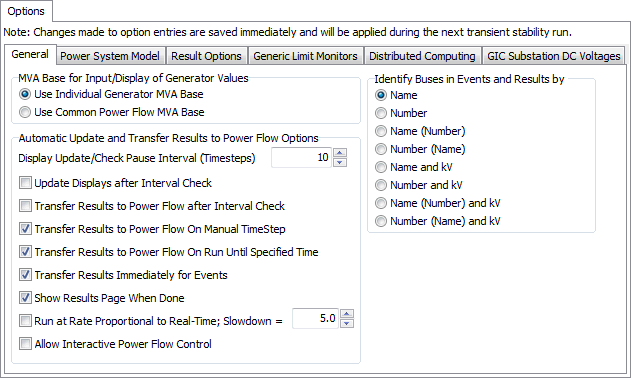

The General sub-tab is found on the Options page of the Transient Stability Analysis dialog. This contains various choices of how data is displayed in the user interface and how you interact with the user interface.
MVA Base for Input/Display of Generator Values
Specify the MVA base to use for generators: either the MVA base value entered for each individual generator or the MVA base value specified for the case.
Identify Buses in Events and Results by
Choose how to identify any buses that appear in transient stability events and results. Buses can be identified by number or name or a combination of both. The nominal kV of the bus can also be used as part of the identifier.
When Case has a Transient Stability Model Show Confirmation Dialog
If in the middle or at the end of a transient stability simulation the user tries to save the case, Simulator can prompt whether to save the case with the power system state after the transient stability simulation or to save the case with the power system state in place prior to starting the transient stability analysis. This option determines when the prompt will appear. If not prompted, the state will remain in the state following the transient stability simulation.
Automatic Update and Transfer Results to Power Flow Options
Specify the interval in time steps to update the displays or when to transfer results to the power flow model. Also, specify whether or not the displays should be updated and when/if results should be transferred to the power flow model. Any open plots will be refreshed automatically when performing the interval check while running transient stability.
