Define Monitoring Exceptions Dialog

Concept Link IconSee Also

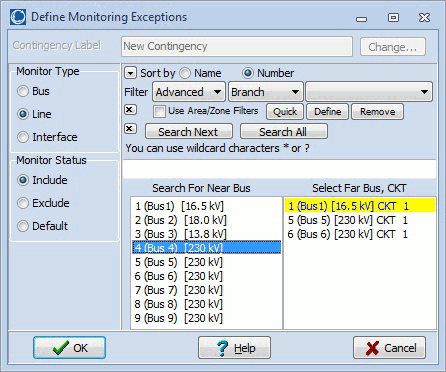

This dialog is used to define exceptions for monitoring elements during specific contingencies. This dialog will open when choosing to insert a new exception or changing an exception from either the Monitoring Exceptions dialog or the Monitoring Exceptions display.





Contingency Label

This gives the contingency for which the monitoring exception applies. Click the Change button to search through a list of all contingencies and select a different contingency. If inserting or changing monitoring exceptions from the Monitoring Exceptions dialog that is shown with a given contingency, the contingency cannot be changed and the Change button will not be enabled.

Monitor Type

Three types of elements can be used for monitoring exceptions: bus, line, and interface. When changing the Monitor Type, the list of objects in the Object Selector will be updated accordingly.

Monitor Status

Include - The selected object will be included for monitoring with this contingency regardless of its status in the case limit monitoring settings.

Exclude - The selected object will be excluded in the monitoring with this contingency regardless of its status in the case limit monitoring settings.

Default - The selected object will obey its monitoring status in the case limit monitoring settings. Use this option when a particular monitoring exception should be ignored for a particular case but the object should remain in the list of monitoring exceptions.

Object Selector

Use this to select the object for the monitoring exception. Lists all objects in the case of the type selected under Monitor Type. Use the filtering and search methods to better manage the list in making a selection.

OK, Cancel

Click OK to accept the monitoring exception changes for the selected contingency and close the dialog. Click Cancel to close the dialog without accepting the changes.
