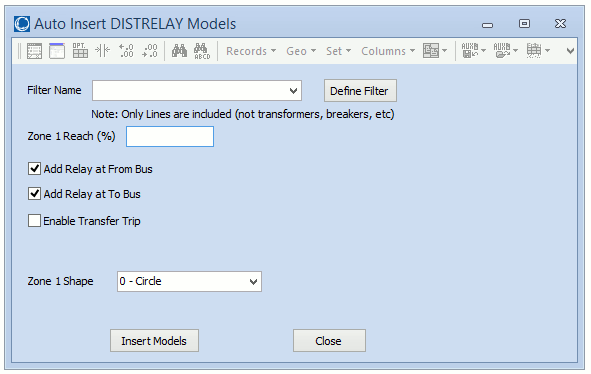

Simulator allows you to automatically generate DistRelay models into the branches.
Filter Name
This is an Advanced Filter to set the branches to which DistRelay models are going to be added.
Zone 1 Reach (%)
This sets the Zone 1 impedance reach in percentage (%) for the DistRelay models added with this dialog.
Add Relay at From Bus
Check to add the DistRelay model at the From Bus of the branch.
Add Relay at To Bus
Check to add the DistRelay model at the To Bus of the branch.
Enable Transfer Trip
Check to set the Transfer Trip for the DistRelay.
Zone 1 Shape
Select the desired Zone 1 Shape for the distance impedance relay.
The options are:
0 - Circle, lens, or tomato
1 - Rectangle
2 - Reactance Distance
3 - Impedance Distance
