Integrated Topology Processing: Primary Bus Mapping
Sometimes, it is necessary to explore or export the topology relations between superbuses and buses in the Full-Topology Model and its Consolidated Representation. Because different sets of switching devices can be preserved by Simulator when solving the Power Flow Using Topology Processing, when solving the Contingency Analysis Using Topology Processing, and when Saving the Planning Case, there will be different mappings for each one of these actions.

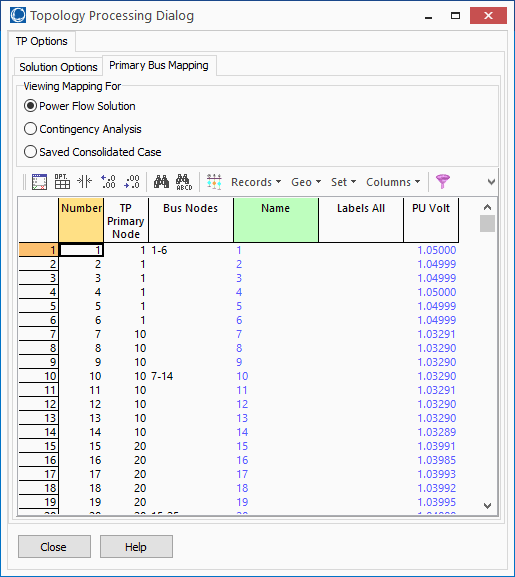

Primary Bus Mapping options are available on the Primary Bus Mapping tab of the Topology Processing Dialog.
This display shows a detailed mapping of superbuses to buses. By changing the selection for which mapping to view, the corresponding mapping that would take place is shown in this case information display.
Power Flow Solution
Provides the mapping used when solving the power flow.
Contingency Analysis
Provides the mapping used when solving contingencies.
Saved Consolidated Case
Provides the corresponding topology relations between the full-topology model and the consolidated case to be saved.
This mapping can be saved as an auxiliary file from the local menu of the display (right-click and choose Save As > Auxiliary File...) or from the case information toolbar.
