DataMaintainer objects represent entities responsible for maintaining the input data for objects in the model. The DataMaintainer object serves 2 purposes
- When a piece of data in a case is suspected to be in error it provides contact information in the form of an email or phone number of someone to contact to ask about this data
- Software has features that allow a user to write out only the data that belongs to a particular DataMaintainer. This construct makes it easier to divide a case into chunks that represent the responsibility of maintaining particular data.
The following statements describe how DataMaintainers relate to other objects.
- Some objects can be assigned a specified DataMaintainer.
- Some objects may inherit their DataMaintainer from a related object.
- Not all object types can even be considered to belong to a DataMaintainer.
- Ultimately, an object can belong to only one DataMaintainer, and the assumption is that all fields associated with that object are the responsibility of the DataMaintainer.
- Caveat to statement 4: a DataMaintainer object itself can belong to another DataMaintainer. In this way groups of DataMaintainers can be created.
Each Object Type has 2 YES and NO questions based on the first two statements above.
- Assign? Can it be assigned a DataMaintainer? YES or NO
- Inherit? Can it Inherit its DataMaintainer from a related object? YES or NO
This gives us 4 permutations to the Assign/Inherit questions: YES/YES, YES/NO, NO/YES and NO/NO.
Specification of DataMaintainer within Software
Within PowerWorld objects there are potentially 4 different columns associated with a DataMaintainer.
- DataMaintainerAssign column is the column that should be used to directly assign a DataMaintainer to a specific object. If an object does not have a DataMaintainer specified directly then this field is just blank. In addition, to clear the DataMaintainerAssign specification you can set this column to a blank string as well. Only objects that support having a DataMaintainer assigned will have this field.
- DataMaintainer column is the column that will show the active DataMaintainer for the object. This will show the inherited DataMaintainer if one is available. An object that either can have the DataMaintainer assigned or can inherited the DataMaintainer will include this field.
- (DataMaintainerInherit were added in Version 19, build on December 1, 2016)
DataMaintainerInherit column is a YES/NO field. A value of YES indicates that inheritance is allowed for this objects- For objects listed below which do not allow Inheritance, this field is not enterable and will always show NO.
- For objects below which AlwaysInherit, this field will also not be enterable and will always show YES.
- For the small list of objects such as Bus, Gen, Load, Shunt, LineShunt, Branch, 3WXFormer, DFACTS, DCTransmissionLine, MTDCRecord and VSCDCLine which can have their own DataMaintainer assigned, but also can inherit the DataMaintainer, then this field will be enterable and the user may toggle the value between YES or NO. Setting the value to NO will prevent these objects from inheriting a DataMaintainer. See the purple dots in the image below for an indication of objects which can toggle this field.
- DataMaintainerInheritBlock were added in Version 19, build on December 1, 2016)
DataMaintainerInheritBlock column is a YES/NO field only available for a Bus and a Substation record. See the thick dashed pink lines around the incoming inheritance arrows that represent this below.- For a Bus, set to YES to block the inheritance of the Data Maintainer for other objects connected to this bus. For example, if this is YES, generators at this bus will not inherit the Data Maintainer from this bus.
- For a Substation, set to YES to block the inheritance of the Data Maintainer for the buses in this substation.
Objects that don't support DataMaintainer (NO/NO)
There is no need to discuss the NO/NO permutation, but generally these are objects representing one of the following 4 types of ObjectTypes.
- Solution options (CTG_Options, SimSolution_Options, etc.)
- Environment options (RatingSetNameBus, RatingSetNameBranch, etc.)
- Objects that are dynamically created and maintained by the software (Island, ZoneTieLine, AreaTieLine, SuperBus)
- Results of a software calculation (ViolationCTG)
Objects to Which DataMaintainer can be assigned, but Inheritance is not allowed (NO/YES)
The following is a list of ObjectTypes that can be assigned a DataMaintainer but never Inherit their DataMaintainer from another object (YES/NO).
Area, BalancingAuthority, BGCalculatedField, Contingency, CTGElementBlock, CustomExpression, CustomExpressionStr, CustomMonitor, DataMaintainer, DFACTSCorrection, Direction, DistributionEquivalent, Filter, GlobalContingencyActionsElement, InjectionGroup, Interface, LimitSet, LoadModelGroup, ModelCondition, ModelExpression, ModelFilter, ModelStringExpression, Owner, PlayIn, RemedialAction, StudyMWTransactions, Substation, SuperArea, TSContingency, TSLimitMonitor, VoltageControlGroup, XFCorrection, Zone
Objects that Can Inherit a DataMaintainer (YES/NO and YES/YES)
Adding the ability for objects to inherit their DataMaintainer may seem to add complexity to the concept of a DataMaintainer. However, it is actually crucial to the use the DataMaintainer. This is because without it, it would require every single data record to be assigned a DataMaintainer independently, which would greatly increase the workload for those adding this new assignment. What we expect to occur instead is that each substation in the model will be assigned a DataMaintainer and that the vast majority of network objects will then simply inherit their DataMaintainer definition from the substation. Even if substations are not added to the models, the DataMaintainer could be assigned to a Bus with inheritance occurring from there.

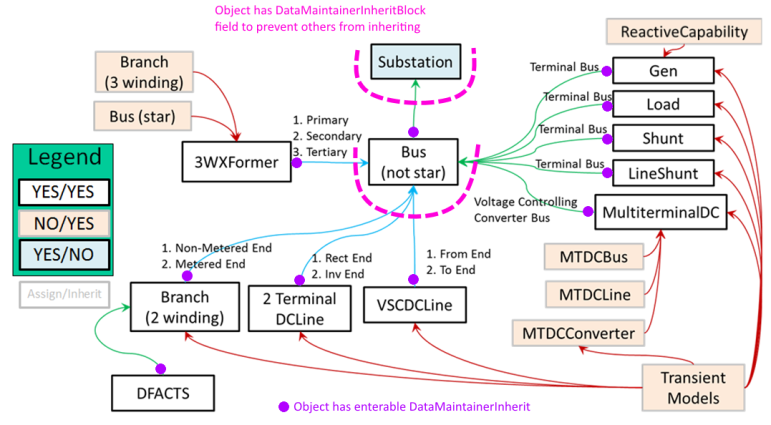

With this explanation for why the inheritance of DataMaintainers is vital, we now cover the final 2 other permutations (YES/YES and NO/YES). For the more complex relationships obtained from the network topology, the following picture illustrates how this inheritance is handled. Boxes which are shaded in light orange represent ObjectTypes which Always Inherit, while boxes that are not shaded represent ObjectTypes which can have a DataMaintainer assigned.
This information can always be obtained from within PowerWorld Simulator by going to the Windows ribbon tab and choose Export Case Object Fields > Send to Excel. In the table exports, in the row representing the ObjectType there are columns which show whether Data Maintainers are supported and whether Data Maintainer Inheritance is supported and how. The table below shows a summary of the objects that existed as of November 2015 in PowerWorld Simulator 19, when the DataMaintainer object was first added. The columns in this table are the ObjectType, whether it can be assigned a DataMaintainer, and finally a precedence of how it inherits its DataMaintainer from a related object.
|
|
ObjectType |
Data Maintainer Support |
Data Maintainer Inheritance Precedence |
|
3WXFormer |
YES |
1. Primary Bus 2. Primary Bus’ Substation 3. Secondary Bus 4. Secondary Bus’ Substation 5. Tertiary Bus 6. Tertiary Bus’ Substation |
|
|
AreaContingencyReserveBid |
AlwaysInherit |
Area |
|
|
AreaOperatingReserveBid |
AlwaysInherit |
Area |
|
|
AreaRegulatingReserveBid |
AlwaysInherit |
Area |
|
|
Branch |
YES |
1. NonMetered Bus 2. NonMetered Bus’ Substation 3. Metered Bus 4. Metered Bus’ Substation (except for windings of a 3WXFormer which inherit from the 3WXFormer) |
|
|
Bus |
YES |
Substation (except for star buses of 3WXFormer which inherit from the 3WXFormer) |
|
|
Condition |
AlwaysInherit |
Filter |
|
|
ContingencyElement |
AlwaysInherit |
Contingency |
|
|
ContingencyMonitoringException |
AlwaysInherit |
Contingency |
|
|
CTGElementBlockElement |
AlwaysInherit |
CTGElementBlock |
|
|
DCTransmissionLine |
YES |
1. Rectifier Bus 2. Rectifier Bus’ Substation 3. Inverter Bus 4. Inverter Bus’ Substation |
|
|
DFACTS |
YES |
1. Branch 2. Branch’s NonMetered Bus 3. Branch’s NonMetered Bus’ Substation 4. Branch’s Metered Bus 5. Branch’s Metered Bus’ Substation |
|
|
Gen |
YES |
1. Bus 2. Bus’ Substation |
|
|
GenBid |
AlwaysInherit |
1. Generator 2. Generator’s Bus 3. Generator’s Bus’ Substation |
|
|
InterfaceElement |
AlwaysInherit |
Interface |
|
|
LineShunt |
YES |
1. Bus 2. Bus’ Substation |
|
|
Load |
YES |
1. Bus 2. Bus’ Substation |
|
|
LoadBid |
AlwaysInherit |
1. Load 2. Load’s Bus 3. Load’s Bus’ Substation |
|
|
ModelConditionCondition |
AlwaysInherit |
ModelCondition |
|
|
ModelFilterCondition |
AlwaysInherit |
ModelFilter |
|
|
MTDCBus |
AlwaysInherit |
1. MTDCRecord 2. MTDCRecord’s VConv_Bus 3. MTDCRecord’s VConv_Bus’s Substation |
|
|
MTDCConverter |
AlwaysInherit |
1. MTDCRecord 2. MTDCRecord’s VConv_Bus 3. MTDCRecord’s VConv_Bus’s Substation |
|
|
MTDCRecord |
YES |
1. Voltage Controlling Converter Bus 2. Voltage Controlling Converter Bus’ Substation |
|
|
MTDCTransmissionLine |
AlwaysInherit |
1. MTDCRecord 2. MTDCRecord’s VConv_Bus 3. MTDCRecord’s VConv_Bus’s Substation |
|
|
PartPoint |
AlwaysInherit |
InjectionGroup |
|
|
PlayInInfo |
AlwaysInherit |
PlayIn |
|
|
PlayInSignal |
AlwaysInherit |
PlayIn |
|
|
PVPlotSeries |
AlwaysInherit |
PVPlot |
|
|
PVPlotVertAxisGroup |
AlwaysInherit |
PVPlot |
|
|
PVSubPlot |
AlwaysInherit |
PVPlot |
|
|
ReactiveCapability |
AlwaysInherit |
1. Generator 2. Generator’s Bus 3. Generator’s Bus’ Substation |
|
|
RemedialActionElement |
AlwaysInherit |
RemedialAction |
|
|
SGPlotSeries |
AlwaysInherit |
SGPlot |
|
|
SGPlotVertAxisGroup |
AlwaysInherit |
SGPlot |
|
|
SGSubPlot |
AlwaysInherit |
SGPlot |
|
|
Shunt |
YES |
1. Bus 2. Bus’ Substation |
|
|
StudyMWTransactionsBid |
AlwaysInherit |
StudyMWTransactions |
|
|
SuperAreaContingencyReserveBid |
AlwaysInherit |
SuperArea |
|
|
SuperAreaOperatingReserveBid |
AlwaysInherit |
SuperArea |
|
|
SuperAreaRegulatingReserveBid |
AlwaysInherit |
SuperArea |
|
|
SupplementalDataContainedObject |
AlwaysInherit |
MyObject |
|
|
TSContingencyElement |
AlwaysInherit |
TSContingency |
|
|
TSPlotSeries |
AlwaysInherit |
TSPlot |
|
|
TSPlotVertAxisGroup |
AlwaysInherit |
TSPlot |
|
|
TSSubPlot |
AlwaysInherit |
TSPlot |
|
|
VSCDCLine |
YES |
From/To_Bus>Substation |
|
|
ZoneContingencyReserveBid |
AlwaysInherit |
Zone |
|
|
ZoneOperatingReserveBid |
AlwaysInherit |
Zone |
|
|
ZoneRegulatingReserveBid |
AlwaysInherit |
Zone |
